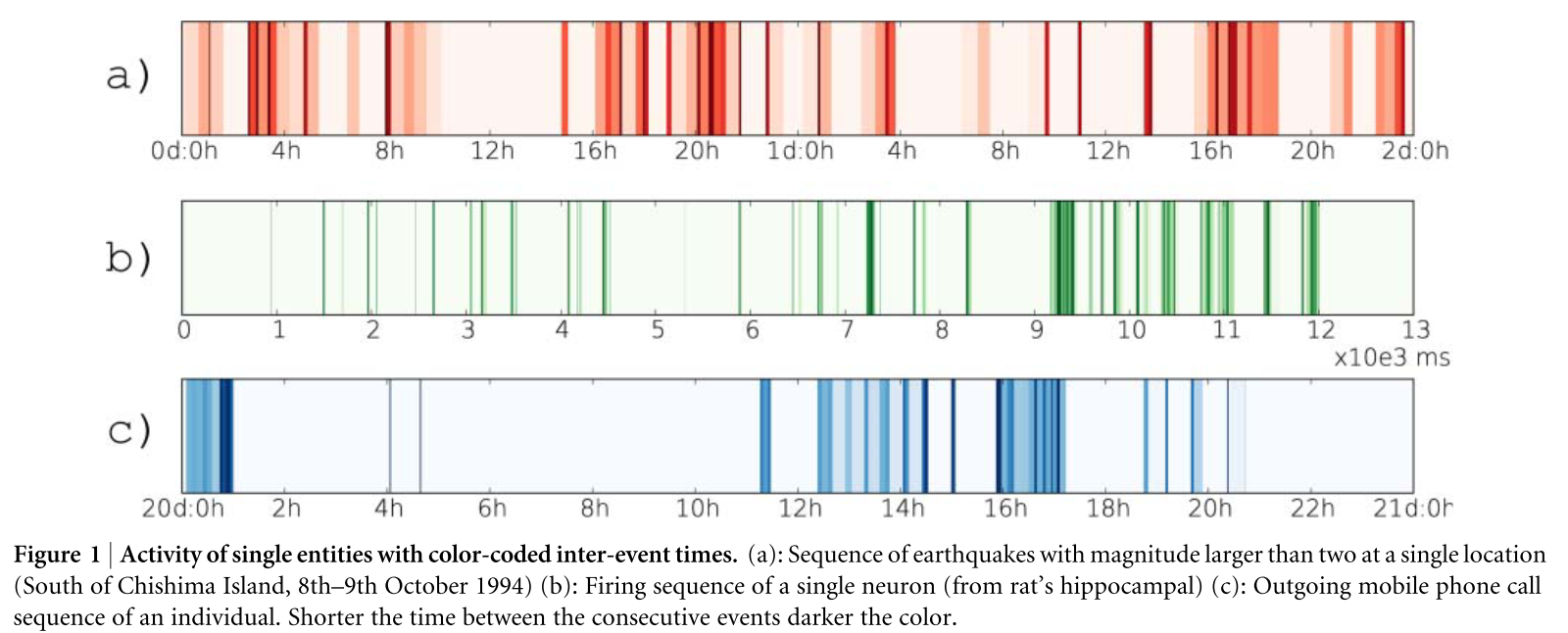

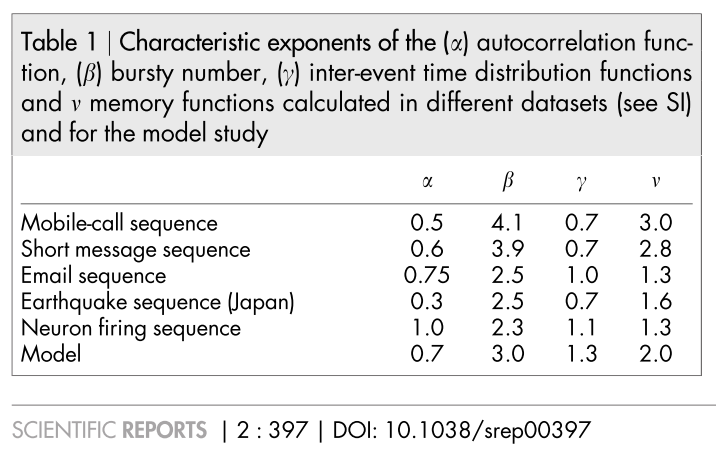

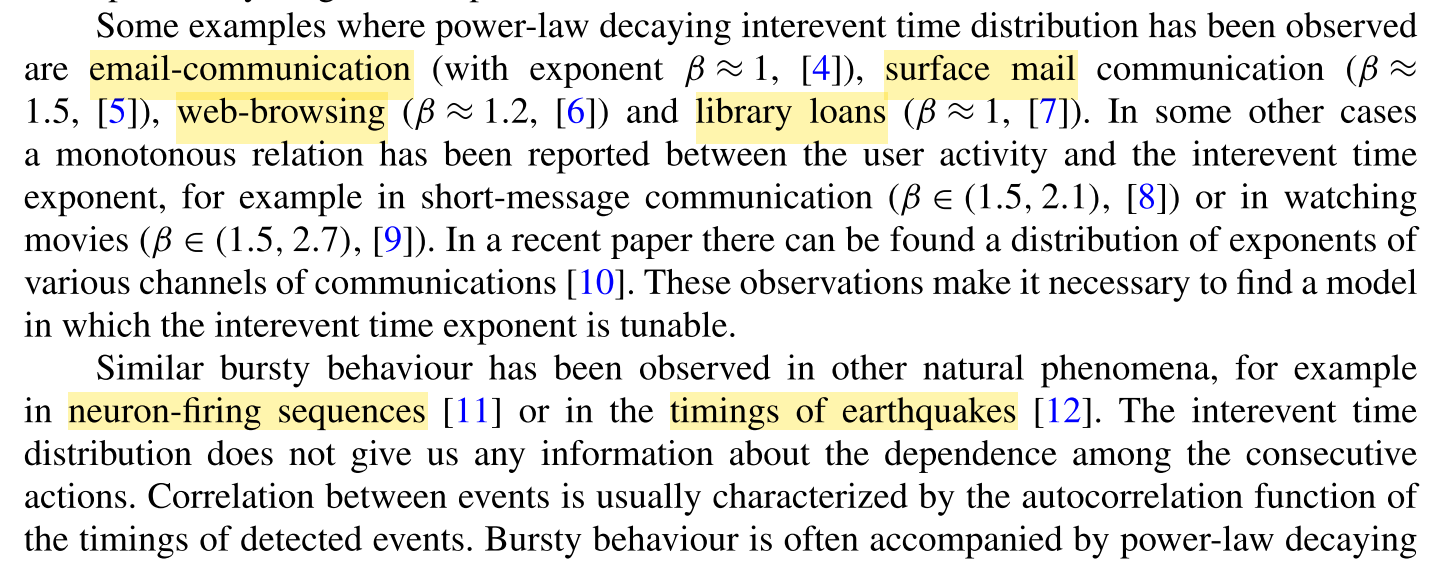

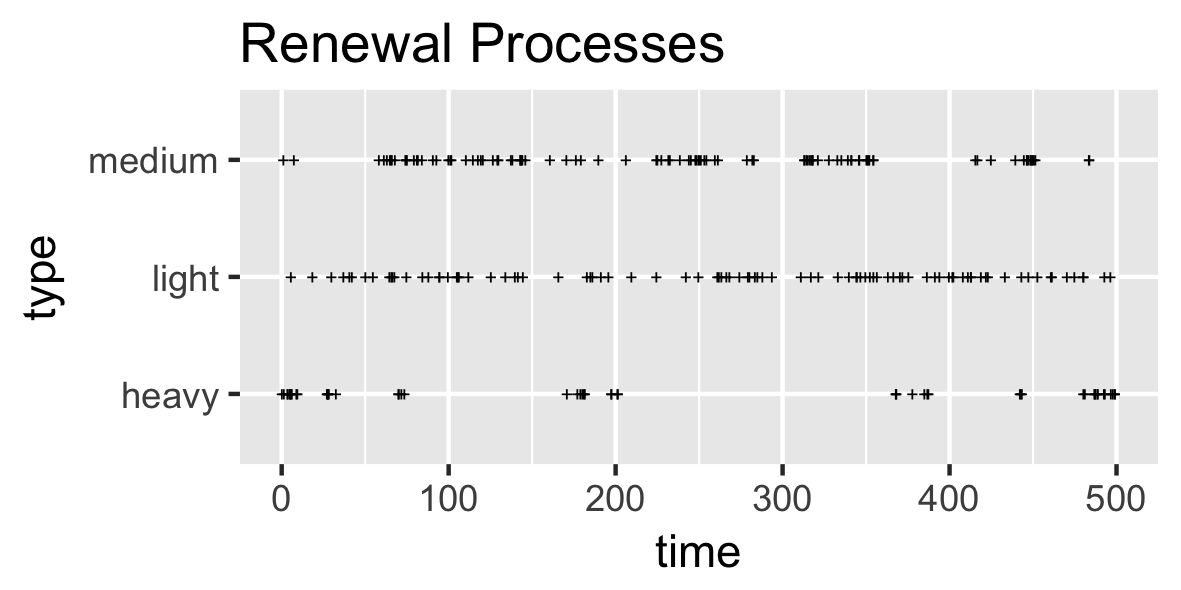

class: center, middle, inverse, title-slide # Inference for Bursty Extremes ## Using R, Shiny and Maths ### <strong>Peter Straka, UNSW Sydney</strong> </br> 🐦<span class="citation">@strakaps</span> 🌐strakaps.github.io ### 2018-06-21 (updated: 2018-10-16) --- class: inverse, middle, center # Empirical Evidence for Burstiness --- ### Heavy-tailed inter-event times  <small> Vajna, S., Tóth, B., & Kertész, J. (2013). _Modelling bursty time series._ New Journal of Physics, 15(10), 103023. http://doi.org/10.1088/1367-2630/15/10/103023 </small> --- # Earthquakes, Neurons, Phone calls  <small> Karsai, M., Kaski, K., Barabási, A. L., & Kertész, J. (2012). _Universal features of correlated bursty behaviour._ Scientific Reports, 2. http://doi.org/10.1038/srep00397 </small> --- # Heavy-tailed renewal processes are BURSTY  --- # More Power-Law Inter-Arrival Times  --- ## More Power-Law Inter-Arrival Times - Resnick and Starica (1995): quiet periods between **transmissions for a networked computer terminal**, `\(\beta \approx 0.6\)` - Mainardi et al. (2000): waiting times between **trades of bond futures**, `\(\beta \approx 0.95\)` - Barabási (2005): `\(\beta \approx 1\)` for waiting **time between emails**, and for waiting time for a reply - Berhondo et al. (2006): `\(1 < \beta < 2\)`, for waiting times between **coronal mass ejections** (solar flares) - Brockmann et al. (2006): `\(\beta \approx 1.05\)`, waiting times for **paper currency to travel** beyond the limits of a metropolitan area. They also report a power law distribution in the ensuing travel distance - Cheng et al. (1995): `\(\beta \approx 1.6\)` in the **waiting time between earthquakes**, and a similar value for waiting time between "starquakes" in neutron stars - Lavergnat and Golé (1998): `\(\beta \approx 0.68\)`, **waiting time between large raindrops** - Smethurst and Williams (2001): `\(\beta \approx 1.4\)`, **waiting times for a doctor appointment** - Sabatelli et al. (2002): `\(\beta \approx 0.4\)`, for **19th century Irish stock prices**, and `\(\beta \approx 1.87\)` for the modern Japanese Yen currencymarket. --- # Waiting time -- Magnitude pairs |Waiting time |Magnitude | |:------------------------------------|:------------------| |Server requests |filesize | |Earthquakes |magnitudes | |Email sent |email replied | |Solar flares |magnitudes | |Time between rest for paper currency |distance travelled | |Time between raindrops |raindrop size | |Time between price jumps |price jumps | --- class: inverse, middle # Research Question 🤔 1. What's a good probability model for the **magnitude** and **timing** of bursty extreme events? 2. Can do you do **statistical inference** with such a model? --- # Continuous Time Random Exceedances (CTRE) Ingredients: - **event magnitudes**: i.i.d. r.v. `\(J_k \in [x_L, x_R]\)` ("support" of `\(J_k\)`) - **waiting times**: i.i.d. r.v. `\(W_k > 0\)` times _between_ events These define the renewal process `\(\{T_n\}_{n \ge 0}\)` where $$ T_n = W_1 + \ldots + W_n $$ `\(T_n\)` is the time of the `\(n\)`-th event with magnitude `\(J_n\)`. This talk considers the *uncoupled* case: `\(\{W_k\}\)` and `\(\{J_k\}\)` are independent sequences. --- # Peaks-Over-Threshold (POT) Method  --- # Generalized Pareto Distribution (GPD) Let `\(\ell \in [x_L, x_R]\)` be a threshold, close to the right end of the support of `\(J_k\)`. Define the **Exceedances** as `$$X(\ell) := J_k - \ell | J_k > \ell.$$` **Theorem (POT, e.g. Leadbetter et al.):** Asymptotically as `\(\ell \uparrow x_R\)`, `\(X_\ell\)` follows a generalized Pareto distribution: $$ X_\ell \sim {\rm GP}(\xi, \bar \sigma), \quad 1 - H(z) = \left(1+\frac{\xi z}{\bar \sigma}\right)^{-1/\xi} $$ Where * `\(H(z)\)` is the CDF of `\(X_\ell\)` * `\(\bar \sigma = \sigma + \xi(\ell - \mu)\)`, and `\((\xi, \sigma, \mu)\)` are parameters of a GEV distribution --- # Peaks-Over-Threshold (POT) * Order the magnitudes `\(\{J_{(1)} > J_{(2)} > \ldots > J_{(n)}\}\)` For thresholds `\(\ell\)` in magnitudes: * extract exceedances `\(X(\ell)\)` * fit `\({\rm GP}(\xi,\sigma)\)` distribution to the `\(X(\ell)\)` Then plot parameters estimates `\(\hat \xi, \hat \sigma\)` against `\(k\)`. Bias-variance trade-off: Small k: few data (high variance) but many geometric summands, hence asymptotically close to M-L distribution (low bias) High k: many data (low variance) but few geometric summands, hence far away from GP distribution (high bias) **Example:** Solar Flares data. [CTRE Shiny App](https://strakaps.shinyapps.io/ctre-app/) --- <iframe src="https://strakaps.shinyapps.io/ctre-app/" style="border: none; width: 1000px; height: 600px"> </iframe> --- # Inference on Exceedances * Threshold `\(\ell = 23000\)` seems to be a reasonable choice * Exceedances of this threshold have a GP distributions with parameters `\(\xi \approx 0.14\)` and `\(\sigma \approx 43000\)`  --- # Threshold Exceedance Time First magnitude above a threshold `\(\ell\)` has index `$$\tau(\ell) = \min\{k: J_k > \ell\}$$` Because the `\(J_k\)` are i.i.d., `$$\tau(\ell) \sim {\rm Geom}(p_\ell), \quad \text{ where } \quad p_\ell = {\rm Pr}(J_k \ge \ell)$$` **Threshold Exceedance Time:** `$$T(\ell) = \sum_{k=1}^{\tau(\ell)} W_k$$` Geometric sums converge to what? 🙋 --- # Scaling Limit of Exceedance Time `\(T(\ell)\)` **Theorem:** * Let `\([x_L, x_R]\)` be the support of the `\(J_k\)`. * Suppose that the `\(W_k\)` are regularly varying¹ with parameter `\(0 < \beta < 1\)` * Let `\(\ell \in [x_L, x_R]\)` be a threshold * Write `\(p_\ell = {\rm Pr}(J_k > \ell)\)`. Then for some `\(\sigma > 0\)`, `$$p_\ell^{1/\beta} T(\ell) \stackrel{d}{\to} {\rm ML}(\beta, \sigma), \quad \ell \uparrow x_R$$` .footnote[ [1] This means `\(\mathbf P(W_k > t) = L(t) t^{-\beta}\)` for some slowly varying function `\(L(t)\)` and `\(\beta \in (0,1)\)` .[2] Gnedenko 1972 ] **Proof:** Due to their tail property, the `\(W_k\)` lie in the domain of geometric attraction of the Mittag-Leffler distribution². --- class: middle ## 🤓 Historical Remark Researchers in "Shock Processes" (1980s) have seemingly tried to derive this result but didn't get past Laplace transforms. This is because Gnedenko's (1972) reresults weren't available to them! It took the end of the Cold War and the invention of the internet to put the two things together. --- # Mittag-Leffler Function **Definition:** `$$E_\beta(z) = \sum_{k=0}^\infty \frac{z^k}{\Gamma(1+\beta k)}, \quad z \in \mathbb R, \quad 0 < \beta \le 1$$` `\(E_\beta(z)\)` nests the exponential function: `$$E_1(z) = e^z$$` Asymptotics for `\(z \to \infty\)`: `$$E_\beta(-z^\beta) \sim z^{-\beta}$$` Asymptotics for `\(z \downarrow 0\)`: `$$E_\beta(-z^\beta) \sim \exp(-z^\beta)$$` --- # Mittag-Leffler Function  --- # Mittag-Leffler-1 Distribution **Definition:** A r.v. `\(T_\beta\)` is **Mittag-Leffler-1 distributed**^☢️ with tail parameter `\(\beta \in (0,1]\)` if `$$\mathbf P(T > t) = E_\beta(-t^\beta), \quad t > 0.$$` * Laplace transform: `\(\frac{1}{1+s^\beta}\)` * The ML-1 distribution is **geometrically stable** * heavy-tailed (infinite mean), but: * As `\(\beta \uparrow 1\)`, `\(T \stackrel{d}{\to} {\rm Exp(1)}\)` * Introduce the scale parameter `\(\sigma > 0\)` via `\(\sigma T \sim \rm{ML}(\beta,\sigma)\)` .footnote[ ☢️ There is also a Mittag-Leffler-2 distribution; see [R package MittagLeffleR](strakaps.github.io/MittagLeffleR/). ] --- ## 🧠 Consequence of Scaling limit for Exceedance Time Recall that we have derived `$$p_\ell^{1/\beta} T(\ell) \stackrel{d}{\to} {\rm ML}(\beta, \sigma_0), \quad \ell \uparrow x_R$$` for the threshold exceedance time `\(T(\ell)\)`. **Consequence:** For large thresholds `\(\ell\)`, we may approximate `$$T(\ell) \approx {\rm ML}(\beta, \sigma_0 p_\ell^{-1/\beta}).$$` As threshold `\(\ell\)` increases, `\(\ell \uparrow x_R\)`, the threshold exceedance times are Mittag-Leffler distributed, with a **constant** tail parameter `\(\beta\)` and a **nonlinearly increasing** scale parameter `\(\sigma = \sigma_0 p_\ell^{-1/\beta}\)` --- # Two-stage estimator **"Algorithm":** 1. Order the magnitudes `\(\{J_{(1)} > J_{(2)} > \ldots > J_{(n)}\}\)` 2. For `\(k\)` in `\(\{5, 6, \ldots, 200\}\)`: a. Extract the `\(k-1\)` exceedance times for threshold `\(\ell = J_{(k)}\)` b. Fit an ML1 distribution to the exceedances, to get the estimates `\(\hat \beta_k, \hat\sigma_k\)` 3. Plot `\(k\)` vs. `\(\beta_k\)` and read off an estimate for `\(\beta\)` 4. Plot `\(k\)` vs. `\(k^{1/\hat\beta} \hat \sigma_k\)`, and read off estimate for `\(\sigma_0\)` --- # Mittag-Leffler estimation via log-moments Let `\(T \sim ML(\beta, \sigma)\)`. All moments are infinite if `\(\beta \in (0,1)\)`. But moments of logarithmic transform are finite: `$$\mu_{\log T} = \mathbf E[\log T] = \log(\sigma) - \gamma, \quad \sigma_{\log T} = {\rm Var}[\log T] = \frac{\pi^2}{6} \left( \frac{2}{\beta^2} - 1 \right)$$` Find parameters `\(\hat \beta\)` and `\(\hat \sigma_T\)` for which the first two centered moments match their _empirical_ counterparts `$$\hat \mu_{\log T} = \frac{1}{n} \sum_{j=1}^n \log(T_j), \quad \hat \sigma_{\log T} = \frac{1}{n} \sum_{j=1}^n (\log(T_j) - \hat \mu_{\log T})^2$$` (Cahoy et al '10) --- <iframe src="https://strakaps.shinyapps.io/ctre-app/" style="border: none; width: 1000px; height: 600px"> </iframe> --- # Example For the Solar Flare Data: * `\(\beta = 0.85\)` or `\(\beta = 0.9\)` seems to be a reasonable choice. Theh null hypothesis that inter-arrival times are exponential, `\(H_0: \beta = 1\)` is rejected. * `\(\sigma = 2 \times 10^7\)` (seconds) seems to be a reasonable choice. Then for a threshold as high as the `\(k\)`-th largest magnitude, the inter-arrival time of events follows the distribution $$ T\left(X_{(k)}\right) \sim {\rm ML}\left(0.85, \frac{2 \times 10^7 {\rm sec}}{k^{-1/0.85}}\right) $$ --- ## Compare to Exponential  --- # Conclusion - Peaks-Over-Threshold can be generalized to heavy-tailed inter-arrival times - The Exponential distribution is a special case of the Mittag-Leffler distribution - Ignoring bursty behaviour underestimates the probabilities of very short and very long waiting times --- # Obvious Extension There are even more "weakly" bursty datasets: `\(1 < \beta < 2\)`. The Problem: ## Skewed geometric stable distributions * no algorithms for their densities * no good estimators --- class: inverse, middle # Thank you for lending me your 👂 ## References: 1. "Peaks Over Threshold for Bursty Time Series". Katharina Hees, Smarak Nayak & Peter Straka. arXiv:1802.05218 2. R package **CTRE**. Katharina Hees & Peter Straka. [strakaps.github.io/CTRE](https://strakaps.github.io/CTRE/) --- ## In case the app doesn't work  --- ## In case the app doesn't work  --- ## In case the app doesn't work  --- ## In case the app doesn't work s
